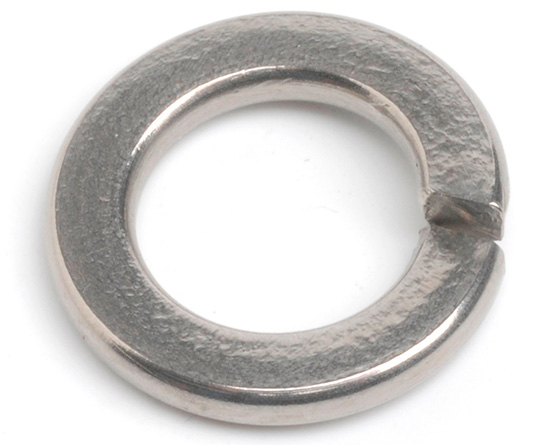

M20 矩形截面弹簧垫圈DIN 127B 303不锈钢
部件号 A12720
£32.69 (exc VAT) per 100
| 数量和价格 | 价格 每 100 |
|---|---|
| 200 + | £32.69 |
| 400 + | £31.06 |
| 800 + | £29.50 |
| 2000 + | £28.03 |
| 4000 + | £26.30 |
最小起订量 200 适用于本产品本产品必须按以下倍数订购 200，数量会在您添加时四舍五入。
更多信息
| Diameter (d) | d1 | d2 | s | b | h |
|---|---|---|---|---|---|
| M1.6 | 1.80-1.60 | 3.4 | 0.4 | 0.75 | 0.8 |
| M2 | 2.4-2.1 | 4.4 | 0.5 | 0.9 | 1.2-1.0 |
| M2.5 | 2.9-2.6 | 5.1 | 0.6 | 1.0 | 1.4-1.2 |
| M3 | 3.4-3.1 | 6.2 | 0.8 | 1.3 | 1.9-1.6 |
| M3.5 | 3.9-3.6 | 6.7 | 0.8 | 1.3 | 1.9-1.6 |
| M4 | 4.4-4.1 | 7.6 | 0.9 | 1.5 | 2.1-1.8 |
| M5 | 5.4-5.1 | 9.2 | 1.2 | 1.8 | 2.8-2.4 |
| M6 | 6.5-6.1 | 11.8 | 1.6 | 2.5 | 3.8-3.2 |
| M7 | 7.5-7.1 | 12.8 | 1.6 | 2.5 | 3.8-3.2 |
| M8 | 8.5-8.1 | 14.8 | 2.0 | 3.0 | 4.7-4.0 |
| M10 | 10.7-10.2 | 18.1 | 2.2 | 3.5 | 5.2-4.4 |
| M12 | 12.7-12.2 | 21.1 | 2.5 | 4.0 | 5.9-5.0 |
| M14 | 14.7-14.2 | 24.1 | 3.0 | 4.5 | 7.1-6.0 |
| M16 | 17.0-16.2 | 27.4 | 3.5 | 5.0 | 8.3-7.0 |
| M18 | 19.0-18.2 | 29.4 | 3.5 | 5.0 | 8.3-7.0 |
| M20 | 21.2-20.2 | 33.6 | 4.0 | 6.0 | 9.4-8.0 |
| M22 | 23.5-22.5 | 35.9 | 4.0 | 6.0 | 9.4-8.0 |
| M24 | 25.5-24.5 | 40.0 | 5.0 | 7.0 | 11.8-10.0 |
| M27 | 28.5-27.5 | 43.0 | 5.0 | 7.0 | 11.8-10.0 |
| M30 | 31.7-30.5 | 48.2 | 6.0 | 8.0 | 14.2-12.0 |
| M33 | 34.7-33.5 | 53.2 | 6.0 | 8.0 | 14.2-12.0 |
| M36 | 37.7-36.5 | 58.2 | 6.0 | 10.0 | 14.2-12.0 |
| M39 | 40.7-39.5 | 61.2 | 6.0 | 10.0 | 14.2-12.0 |
| M42 | 43.7-42.5 | 68.2 | 7.0 | 12.0 | 16.5-14.0 |
| M45 | 46.7-45.5 | 71.2 | 7.0 | 12.0 | 16.5-14.0 |
| M48 | 50.5-49.0 | 75.0 | 7.0 | 12.0 | 16.5-14.0 |
