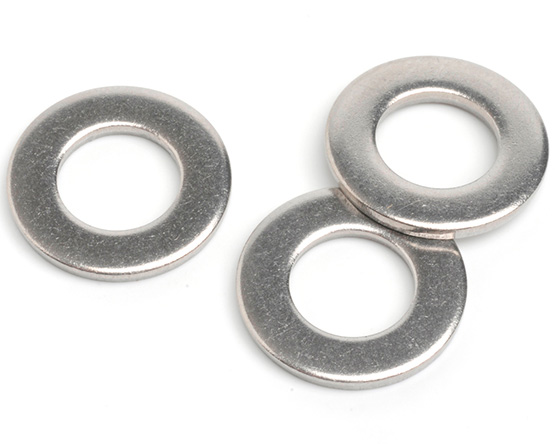

M18 A型平垫圈DIN 125 316不锈钢
£41.08 (exc VAT) per 100
部件号 A12518AA4
£41.08 (exc VAT) per 100
| 数量和价格 | 价格 每 100 |
|---|---|
| 200 + | £41.08 |
| 400 + | £39.03 |
| 800 + | £37.07 |
| 2000 + | £35.23 |
| 4000 + | £33.05 |
本产品必须按以下倍数订购 200，数量会在您添加时四舍五入。
更多信息
| Diameter (d) | d1 | d2 | h |
|---|---|---|---|
| M1.6 | 1.7 | 4.00-3.70 | 0.35-0.25 |
| M1.7 | 1.8 | 4.50-4.20 | 0.35-0.25 |
| M2 | 2.2 | 5.00-4.70 | 0.35-0.25 |
| M2.5 | 2.7 | 6.00-5.70 | 0.55-0.45 |
| M3 | 3.2 | 7.00-6.64 | 0.55-0.45 |
| M3.5 | 3.7 | 8.00-7.64 | 0.55-0.45 |
| M4 | 4.3 | 9.00-8.64 | 0.90-0.70 |
| M5 | 5.3 | 10.00-9.64 | 1.10-0.90 |
| M6 | 6.4 | 12.00-11.57 | 1.80-1.40 |
| M7 | 7.4 | 14.00-13.57 | 1.80-1.40 |
| M8 | 8.4 | 16.00-15.57 | 1.80-1.40 |
| M10 | 10.5 | 20.00-19.48 | 2.20-1.80 |
| M12 | 13 | 24.00-23.48 | 2.70-2.30 |
| M14 | 15 | 28.00-27.48 | 2.70-2.30 |
| M16 | 17 | 30.00-29.48 | 3.30-2.70 |
| M18 | 19 | 34.00-33.38 | 3.30-2.70 |
| M20 | 21 | 37.00-36.38 | 3.30-2.70 |
| M22 | 23 | 39.00-38.38 | 3.30-2.70 |
| M24 | 25 | 44.00-43.38 | 4.30-3.70 |
| M27 | 28 | 50.00-49.38 | 4.30-3.70 |
| M30 | 31 | 56.00-55.26 | 4.30-3.70 |
| M33 | 34 | 60.00-58.80 | 5.60-4.40 |
| M36 | 37 | 66.00-64.80 | 5.60-4.40 |
| M39 | 40 | 72.00-70.80 | 6.60-5.40 |
| M42 | 43 | 78.00-76.80 | 8.00-6.00 |
| M45 | 46 | 85.00-83.60 | 8.00-6.00 |
| M48 | 50 | 92.00-90.60 | 9.00-7.00 |
| M52 | 54 | 98.00-96.60 | 9.00-7.00 |
| M56 | 58 | 105.00-103.60 | 10.00-8.00 |
