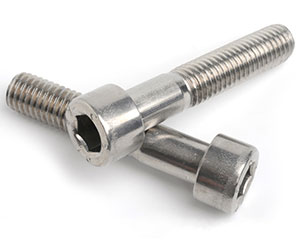

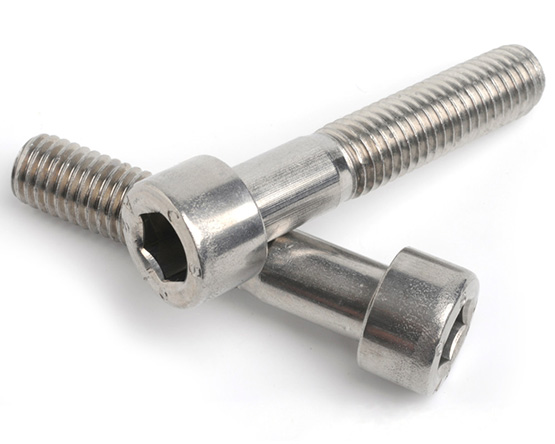

M3 X 12 内六角头螺丝DIN 912 / ISO 4762 316不锈钢
£5.28 (exc VAT) per 100
部件号 A9120312A4
£5.28 (exc VAT) per 100
| 数量和价格 | 价格 每 100 |
|---|---|
| 1000 + | £5.28 |
| 2000 + | £5.02 |
| 4000 + | £4.77 |
| 10000 + | £4.53 |
| 20000 + | £4.25 |
本产品必须按以下倍数订购 1000，数量会在您添加时四舍五入。
更多信息
| Diameter (d) | Pitch | dk | k | s (nom) | t (min) | b (max) |
|---|---|---|---|---|---|---|
| M1.4 | 0.30 | 2.60-2.46 | 1.40-1.26 | 1.3 | 0.6 | 14 |
| M1.6 | 0.35 | 3.00-2.86 | 1.60-1.46 | 1.5 | 0.7 | 15 |
| M2 | 0.40 | 3.80-3.62 | 2.00-1.86 | 1.5 | 1.0 | 16 |
| M2.5 | 0.45 | 4.50-4.32 | 2.50-2.36 | 2.0 | 1.1 | 17 |
| M3 | 0.50 | 5.50-5.32 | 3.00-2.86 | 2.5 | 1.3 | 18 |
| M3.5 | 0.60 | 6.00-5.82 | 3.50-3.36 | 2.5 | 1.6 | 20 |
| M4 | 0.70 | 7.00-6.78 | 4.00-3.82 | 3.0 | 2.0 | 20 |
| M5 | 0.80 | 8.50-8.28 | 5.00-4.82 | 4.0 | 2.5 | 22 |
| M6 | 1.00 | 10.00-9.78 | 6.00-5.70 | 5.0 | 3.0 | 24 |
| M8 | 1.25 | 13.00-12.73 | 8.00-7.64 | 6.0 | 4.0 | 28 |
| M10 | 1.50 | 16.00-15.73 | 10.00-9.64 | 8.0 | 5.0 | 32 |
| M12 | 1.75 | 18.00-17.73 | 12.00-11.57 | 10 | 6.0 | 36 |
| M14 | 2.00 | 21.00-20.67 | 14.00-13.57 | 12 | 7.0 | 40 |
| M16 | 2.00 | 24.00-23.67 | 16.00-15.57 | 14 | 8.0 | 44 |
| M18 | 2.5 | 27.00-26.67 | 18.00-17.57 | 14 | 9.0 | 48 |
| M20 | 2.50 | 30.00-29.67 | 20.00-19.48 | 17 | 10 | 52 |
| M22 | 2.50 | 33.00-32.61 | 22.00-21.48 | 17 | 11 | 56 |
| M24 | 3.00 | 36.00-35.61 | 24.00-23.48 | 19 | 12 | 60 |
| M27 | 3.00 | 40.00-39.61 | 27.00-26.48 | 19 | 13.5 | 66 |
| M30 | 3.50 | 45.00-44.61 | 30.00-29.48 | 22 | 15.5 | 72 |
