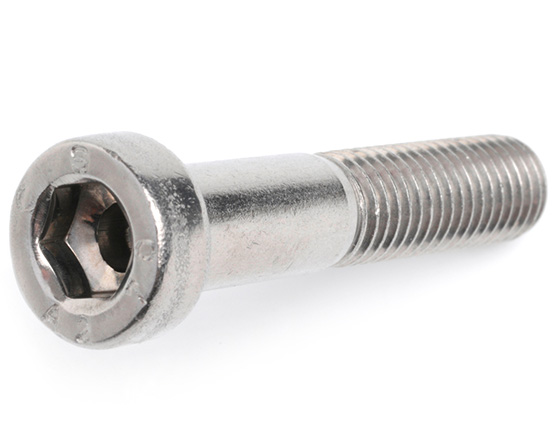

M20 X 65 带导向孔的薄型内六角头螺丝DIN 6912 304-70不锈钢

£849.61 (exc VAT) per 100

M20 X 65 LOW HEAD SOCKET CAP SCREW DIN 6912 A2 ST/ST

M20 X 65 LOW HEAD SOCKET CAP SCREW DIN 6912 A2 ST/ST

M20 X 65 LOW HEAD SOCKET CAP SCREW DIN 6912 A2 ST/ST

部件号 A69122065

£849.61 (exc VAT) per 100

数量和价格	价格每 100
25 +	£849.61
50 +	£807.13
100 +	£766.77
250 +	£728.54
500 +	£683.51

购买更多带导向孔的薄型内六角头螺丝DIN 6912

更多信息

Diameter (d)	Pitch	dk	k	s (nom)	b (max)
M3	0.50	5.50-5.28	2.00-1.86	2.0	12
M4	0.70	7.00-6.78	2.80-2.66	3.0	14
M5	0.80	8.50--8.28	3.50-3.32	4.0	16
M6	1.00	10.00-9.78	4.00-3.82	5.0	18
M8	1.25	13.00-12.73	5.00-4.82	6.0	22
M10	1.50	16.00-15.73	6.50-6.28	8.0	26
M12	1.75	18.00-17.73	7.50-7.28	10	30
M16	2.00	24.00-23.67	10.00-9.78	14	38
M20	2.5	30.00-29.67	12.00-11.73	17	46
M24	3.00	36.00-35.61	14.00-13.73	19	54
