标准范围：公制 M1.0 > M52 英寸盎司 > 2"
-
电子目录

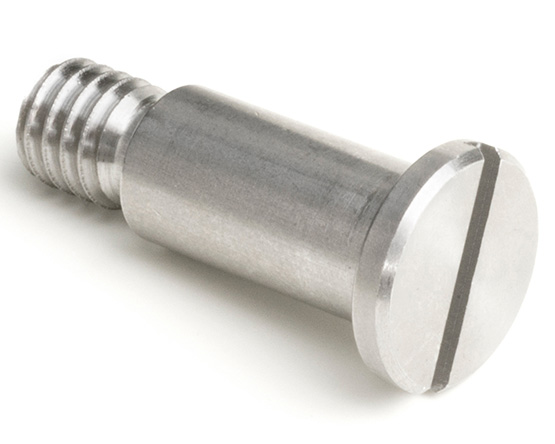

1/8 (4-40 UNC) X 3/32 精密薄型槽形柱式头带肩螺丝 303不锈钢
£1327.00 (exc VAT) per 100
部件号 USS184400093LS
£1327.00 (exc VAT) per 100
| 数量和价格 | 价格 每 100 |
|---|---|
| 2 + | £1327.00 |
| 5 + | £1260.65 |
| 10 + | £1197.62 |
| 25 + | £1137.90 |
| 50 + | £1067.57 |
更多信息
| ds (nom) | ds | d | dk | k | b |
|---|---|---|---|---|---|
| 3/32" | 0.093-0.092 | 2-56 | 3/16" | 1/16" | 1/8" |
| 1/8" | 0.125-0.124 | 4-40 | 1/4" | 3/32" | 5/32" |
| 5/32" | 0.156-0.155 | 6-32 | 9/32" | 5/64" | 3/16" |
| 3/16" | 0.187-0.186 | 8-32 | 5/16" | 7/64" | 3/16" |
| 1/4" | 0.250-0.249 | 10-24 | 3/8" | 1/8" | 3/8" |
| 1/4" | 0.250-0.249 | 10-32 | 3/8" | 1/8" | 1/4" |
| 5/16" | 0.312-0.311 | 1/4-20 | 7/16" | 1/8" | 7/16" |
| 3/8" | 0.375-0.374 | 1/4-20 | 9/16" | 3/32" | 7/16" |
| 3/8" | 0.375-0.374 | 5/16-18 | 9/16" | 3/32" | 1/2" |
