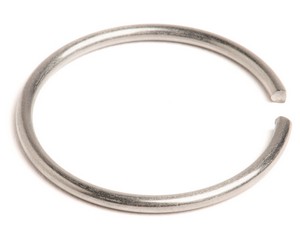

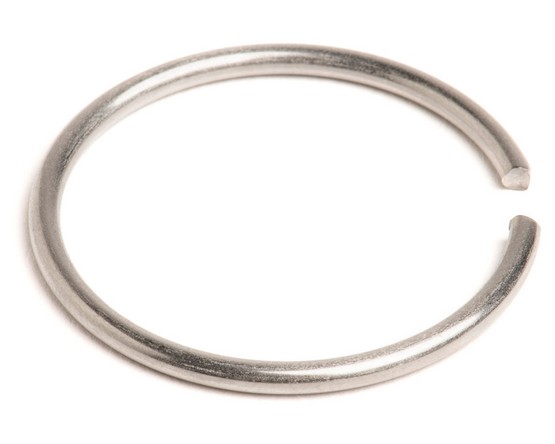

12MM 轴用钢丝卡环DIN 9925 / DIN 7993A 1.4310不锈钢
部件号 A992512
£39.32 (exc VAT) per 100
| 数量和价格 | 价格 每 100 |
|---|---|
| 500 + | £39.32 |
| 1000 + | £37.35 |
| 2000 + | £35.49 |
| 5000 + | £33.72 |
| 10000 + | £31.63 |
更多信息
| Shaft Diameter (d1) | d3 | d2 (nom) | d7 (nom) | e (approx) | r |
|---|---|---|---|---|---|
| 4 | 3.4-3.2 | 3.5 | 0.5 | 1 | 0.3 |
| 5 | 4.4-4.2 | 4.5 | 0.5 | 1 | 0.3 |
| 6 | 5.3-5.1 | 5.4 | 0.6 | 1 | 0.4 |
| 7 | 6.3-6.0 | 6.4 | 0.6 | 2 | 0.4 |
| 8 | 7.1-6.8 | 7.2 | 0.8 | 2 | 0.5 |
| 10 | 9.1-8.8 | 9.2 | 0.8 | 2 | 0.5 |
| 12 | 10.8-10.4 | 11.0 | 1 | 3 | 0.6 |
| 14 | 12.8-12.4 | 13.0 | 1 | 3 | 0.6 |
| 16 | 14.2-13.8 | 14.4 | 1.6 | 3 | 0.9 |
| 18 | 16.2-15.8 | 16.4 | 1.6 | 3 | 0.9 |
| 20 | 17.7-17.2 | 18.0 | 2 | 3 | 1.1 |
| 22 | 19.7-19.2 | 20.0 | 2 | 3 | 1.1 |
| 24 | 21.7-21.2 | 22.0 | 2 | 3 | 1.1 |
| 25 | 22.7-22.2 | 23.0 | 2 | 3 | 1.1 |
| 26 | 23.7-23.2 | 24.0 | 2 | 3 | 1.1 |
| 28 | 25.7-25.2 | 26.0 | 2 | 3 | 1.1 |
| 30 | 27.7-27.2 | 28.0 | 2 | 3 | 1.1 |
| 32 | 29.1-28.5 | 29.5 | 2.5 | 4 | 1.4 |
| 35 | 32.1-31.5 | 32.5 | 2.5 | 4 | 1.4 |
| 38 | 35.1-34.5 | 35.5 | 2.5 | 4 | 1.4 |
| 40 | 37.1-36.5 | 37.5 | 2.5 | 4 | 1.4 |
| 42 | 39.0-38.2 | 39.5 | 2.5 | 4 | 1.4 |
| 45 | 42.0-41.2 | 42.5 | 2.5 | 4 | 1.4 |
| 48 | 45.0-44.2 | 45.5 | 2.5 | 4 | 1.4 |
| 50 | 47.0-46.2 | 47.5 | 2.5 | 4 | 1.4 |
