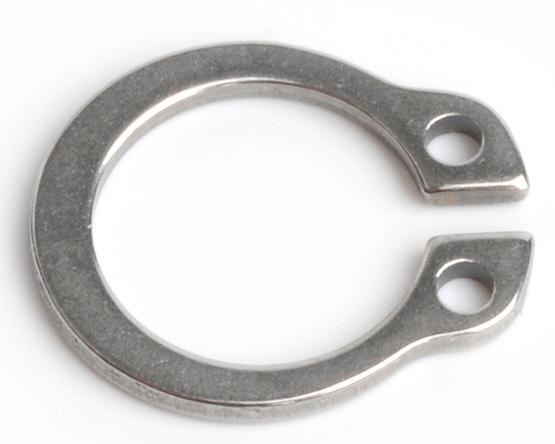

20MM 外部挡圈DIN 471 1.4122不锈钢

Name: 20MM 外部挡圈DIN 471 1.4122不锈钢
SKU: A47120
Price: 96.41 GBP
Availability: InStock

£96.41 (exc VAT) per 100

部件号 A47120

£96.41 (exc VAT) per 100

购买更多外部挡圈DIN 471

Shaft Diameter (d1)	d5 MIN	d3	a (max)	b	d4
3	1	2.7	1.9	0.8	7.0
4	1	3.7	2.2	0.9	8.6
5	1	4.7	2.5	1.1	10.3
6	1.2	5.6	2.7	1.3	11.7
7	1.2	6.5	3.1	1.4	13.5
8	1.2	7.4	3.2	1.5	14.7
9	1.2	8.4	3.3	1.7	16.0
10	1.5	9.3	3.3	1.8	17.0
11	1.5	10.2	3.3	1.8	18.0
12	1.7	11.0	3.3	1.8	19.0
13	1.7	11.9	3.4	1.9	20.2
14	1.7	12.9	3.5	2.1	21.4
15	1.7	13.8	3.6	2.2	22.6
16	1.7	14.7	3.7	2.2	23.8
17	1.7	15.7	3.8	2.3	25.0
18	2	16.5	3.9	2.5	26.2
19	2	17.5	3.9	2.5	27.2
20	2	18.5	4.0	2.6	28.4
21	2	19.5	4.1	2.7	29.6
22	2	20.5	4.2	2.8	30.8
23	2	21.4	4.3	2.9	*
24	2	22.2	4.4	3.0	33.2
25	2	23.2	4.4	3.0	34.2
26	2	24.2	4.4	3.1	35.5
27	2	25.1	4.6	3.1	*
28	2	25.9	4.7	3.2	37.9
29	2	26.9	4.8	3.4	39.1
30	2	27.9	5.0	3.5	40.5
32	2.5	29.6	5.2	3.6	43.0
34	2.5	31.5	5.4	3.8	45.4
35	2.5	32.2	5.6	3.9	46.8
36	2.5	33.2	5.6	4.0	47.8
37	2.5	34.2	5.7	4.1	*
38	2.5	35.2	5.8	4.2	50.2
39	2.5	36	5.9	4.3	*
40	2.5	36.5	6	4.4	52.6
42	2.5	38.5	6.5	4.5	55.7
45	2.5	41.5	6.7	4.7	59.1
47	2.5	43.5	6.8	4.9	*
48	2.5	44.5	6.9	5.0	62.5
50	2.5	45.8	6.9	5.1	64.5
52	2.5	47.8	7	5.2	66.7
55	2.5	50.8	7.2	5.4	70.2
60	2.5	55.8	7.4	5.8	75.6
62	2.5	57.8	7.5	6.0	77.8
65	3	60.8	7.8	6.3	81.4
70	3	65.5	8.1	6.6	87.0
75	3	70.5	8.4	7.0	92.7
80	3	74.5	8.6	7.4	98.1
85	3.5	79.5	8.7	7.8	103.3
90	3.5	84.5	8.8	8.2	108.5
95	3.5	89.5	9.4	8.6	114.8
100	3.5	94.5	9.6	9.0	120.2
105	3.5	98	9.9	9.3	125.8
110	3.5	103	10.1	9.6	131.2
115	3.5	108	10.6	9.8	137.3
120	3.5	113	11	10.2	143.1
125	4	118	11.4	10.4	149
130	4	123	11.6	10.7	154.4
135	4	128	11.8	11	159.8
140	4	133	12	11.2	165.2
145	4	138	12.2	11.5	170.6
150	4	142	13	11.8	177.3
