标准范围：公制 M1.0 > M52 英寸盎司 > 2"
-
电子目录

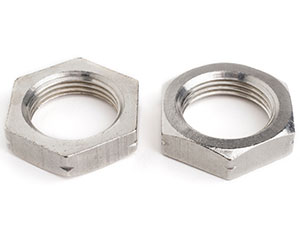

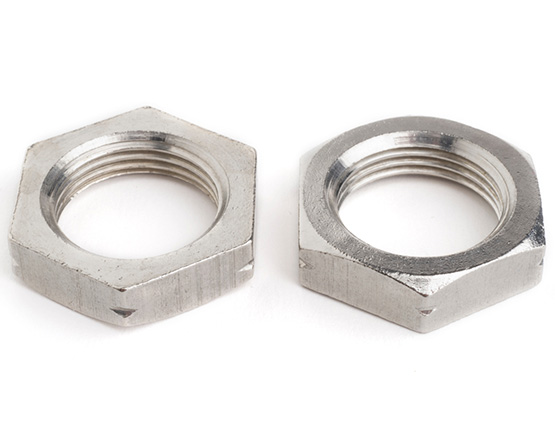

G 1.1/4" 管螺母DIN 431 (55mm 对边) 304不锈钢
£557.20 (exc VAT) per 100
部件号 A431G114-55
£557.20 (exc VAT) per 100
| 数量和价格 | 价格 每 100 |
|---|---|
| 5 + | £557.20 |
| 10 + | £529.34 |
| 20 + | £502.87 |
| 50 + | £477.80 |
| 100 + | £448.27 |
更多信息
| Diameter (d) | s | m |
|---|---|---|
| 1/8" | 18.00-17.57 | 6.48-6.00 |
| 1/8" | 19.00-18.48 | 6.48-6.00 |
| 1/4" | 21.00-20.16 | 6.48-6.00 |
| 1/4" | 22.00-21.16 | 6.48-6.00 |
| 3/8" | 27.00-26.16 | 7.58-7.00 |
| 1/2" | 32.00-31.00 | 8.58-8.00 |
| 1/2" | 34.00-33.00 | 8.58-8.00 |
| 5/8" | 32.00-31.00 | 8.58-8.00 |
| 5/8" | 34.00-33.00 | 8.58-8.00 |
| 3/4" | 36.00-34.00 | 9.58-9.00 |
| 7/8" | 41.00-40.00 | 9.58-9.00 |
| 1" | 46.00-45.00 | 10.58-10.00 |
| 1.1/8" | 50.00-49.00 | 10.58-10.00 |
| 1.1/4" | 55.00-53.80 | 11.70-11.00 |
| 1.1/2" | 60.00-58.80 | 12.70-12.00 |
| 2" | 75.00-73.10 | 13.70-13.00 |
| 3" | 105.00-102.80 | 19.84-19.00 |
