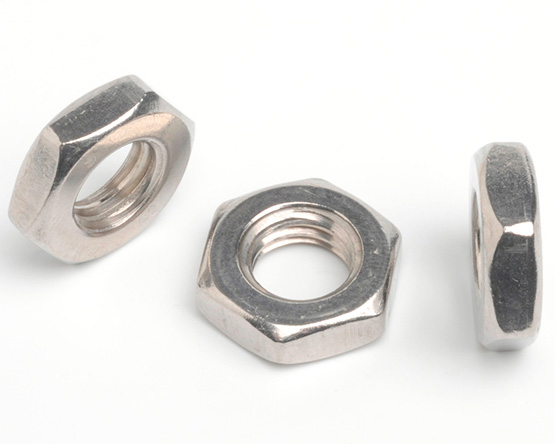

M2 六角薄螺母DIN 439 304不锈钢
£3.29 (exc VAT) per 100
部件号 A43902
£3.29 (exc VAT) per 100
| 数量和价格 | 价格 每 100 |
|---|---|
| 1000 + | £3.29 |
| 2000 + | £3.13 |
| 4000 + | £2.97 |
| 10000 + | £2.82 |
| 20000 + | £2.65 |
本产品必须按以下倍数订购 1000，数量会在您添加时四舍五入。
更多信息
| Diameter (d) | Pitch | s | m |
|---|---|---|---|
| M1.6 | 0.35 | 3.20-3.02 | 1.00-0.75 |
| M2 | 0.40 | 4.00-3.82 | 1.20-0.95 |
| M2.3 | 0.40 | 4.50-4.32 | 1.60-1.35 |
| M2.5 | 0.45 | 5.00-4.82 | 1.60-1.35 |
| M2.6 | 0.45 | 5.00-4.82 | 1.60-1.35 |
| M3 | 0.50 | 5.50-5.32 | 1.80-1.55 |
| M3.5 | 0.60 | 6.00-5.82 | 2.00-1.75 |
| M4 | 0.70 | 7.00-6.78 | 2.20-1.95 |
| M5 | 0.80 | 8.00-7.78 | 2.70-2.45 |
| M6 | 1.00 | 10.00-9.78 | 3.20-2.90 |
| M8 | 1.25 | 13.00-12.73 | 4.00-3.70 |
| M10 | 1.50 | 17.00-15.73 | 5.00-4.70 |
| M12 | 1.75 | 19.00-17.73 | 6.00-5.70 |
| M14 | 2.00 | 22.00-20.67 | 7.00-6.42 |
| M16 | 2.00 | 24.00-23.67 | 8.00-7.42 |
| M18 | 2.50 | 27.00-26.16 | 9.00-8.42 |
| M20 | 2.50 | 30.00-29.16 | 10.00-9.10 |
| M22 | 2.50 | 32.00-31.00 | 11.00-9.90 |
| M24 | 3.00 | 36.00.35.00 | 12.00-10.90 |
| M27 | 3.00 | 41.00-40.00 | 13.50-12.40 |
| M30 | 3.50 | 46.00-45.00 | 15.00-13.90 |
| M33 | 3.50 | 50.00-49.00 | 16.50-15.40 |
| M36 | 4.00 | 55.00-53.80 | 18.00-16.90 |
| M39 | 4.00 | 60.00-58.80 | 19.50-18.20 |
| M42 | 4.50 | 65.00-63.10 | 21.00-19.70 |
| M45 | 4.50 | 70.00-68.10 | 22.50-21.20 |
| M48 | 5.00 | 75.00-73.10 | 24.00-22.70 |
