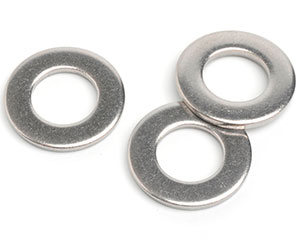

M8 平垫圈200HV ISO 7089 304不锈钢
£4.21 (exc VAT) per 100
部件号 A708908
£4.21 (exc VAT) per 100
| 数量和价格 | 价格 每 100 |
|---|---|
| 500 + | £4.21 |
| 1000 + | £4.00 |
| 2000 + | £3.80 |
| 5000 + | £3.61 |
| 10000 + | £3.39 |
本产品必须按以下倍数订购 500，数量会在您添加时四舍五入。
更多信息
| Diameter (d) | d1 | d2 | h |
|---|---|---|---|
| M1.6 | 1.84-1.70 | 4.00-3.70 | 0.35-0.25 |
| M2 | 2.34-2.20 | 5.00-4.70 | 0.35-0.25 |
| M2.5 | 2.84-2.70 | 6.00-5.70 | 0.55-0.45 |
| M3 | 3.38-3.20 | 7.00-6.64 | 0.55-0.45 |
| M4 | 4.48-4.30 | 9.00-8.64 | 0.90-0.70 |
| M5 | 5.48-5.30 | 10.00-9.64 | 1.10-0.90 |
| M6 | 6.62-6.40 | 12.00-11.57 | 1.80-1.40 |
| M8 | 8.62-8.40 | 16.00-15.57 | 1.80-1.40 |
| M10 | 10.77-10.50 | 20.00-19.48 | 2.20-1.80 |
| M12 | 13.27-13.00 | 24.00-23.48 | 2.70-2.30 |
| M14 | 15.27-15.00 | 28.00-27.48 | 2.70-2.30 |
| M16 | 17.27-17.00 | 30.00-29.48 | 3.30-2.70 |
| M18 | 19.33-19.00 | 34.00-33.38 | 3.30-2.70 |
| M20 | 21.33-21.00 | 37.00-36.38 | 3.30-2.70 |
| M22 | 23.33-23.00 | 39.00-38.38 | 3.30-2.70 |
| M24 | 25.33-25.00 | 44.00-43.38 | 4.30-3.70 |
| M27 | 28.33-28.00 | 50.00-49.38 | 4.30-3.70 |
| M30 | 31.39-31.00 | 56.00-55.26 | 4.30-3.70 |
| M33 | 34.62-34.00 | 60.00-58.80 | 5.60-4.40 |
| M36 | 37.62-37.00 | 66.00-64.80 | 5.60-4.40 |
| M39 | 42.62-42.00 | 72.00-70.80 | 6.60-5.40 |
| M42 | 45.62-45.00 | 78.00-76.80 | 9.00-7.00 |
| M45 | 48.62-48.00 | 85.00-83.60 | 9.00-7.00 |
| M48 | 52.74-52.00 | 92.00-90.60 | 9.00-7.00 |
| M52 | 56.74-56.00 | 98.00-96.60 | 9.00-7.00 |
| M56 | 62.74-62.00 | 105.00-103.60 | 11.00-9.00 |
