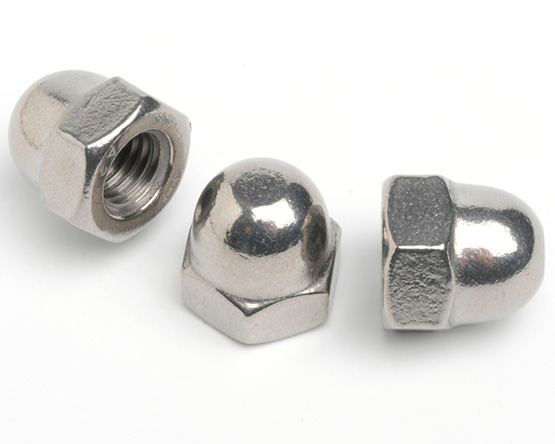

M3 六角圆顶螺母DIN 1587 304不锈钢
£7.16 (exc VAT) per 100
部件号 A158703
£7.16 (exc VAT) per 100
| 数量和价格 | 价格 每 100 |
|---|---|
| 500 + | £7.16 |
| 1000 + | £6.80 |
| 2000 + | £6.46 |
| 5000 + | £6.14 |
| 10000 + | £5.76 |
本产品必须按以下倍数订购 500，数量会在您添加时四舍五入。
更多信息
| Diameter (d) | Pitch | s | m | h (max) |
|---|---|---|---|---|
| M3 | 0.50 | 5.50-5.28 | 2.40-2.10 | 6.00 |
| M4 | 0.70 | 7.00-6.78 | 3.20-2.90 | 8.00 |
| M5 | 0.80 | 8.00-7.78 | 4.00-3.70 | 10.00 |
| M6 | 1.00 | 10.00-9.78 | 5.00-4.70 | 12.00 |
| M7 | 1.00 | 10.00-9.78 | 5.00-4.70 | 12.00 |
| M8 | 1.25 | 13.00-12.73 | 6.50-6.14 | 15.00 |
| M10 | 1.50 | 17.00-16.73 | 8.00-7.64 | 18.00 |
| M12 | 1.75 | 19.00-18.73 | 10.00-9.64 | 22.00 |
| M14 | 2.00 | 22.00-21.67 | 11.00-10.30 | 25.00 |
| M16 | 2.00 | 24.00-23.67 | 13.00-12.30 | 28.00 |
| M18 | 2.50 | 27.00-26.67 | 15.00-14.30 | 32.00 |
| M20 | 2.50 | 30.00-29.67 | 16.00-14.90 | 34.00 |
| M22 | 2.50 | 32.00-31.38 | 18.00-16.90 | 39.00 |
| M24 | 3.00 | 36.00-35.38 | 19.00-17.70 | 42.00 |
| M27 | 3.00 | 41.00-40.38 | 22.00-20.70 | 47.00 |
| M30 | 3.50 | 46.00-45.38 | 24.00-22.70 | 52.00 |
| M33 | 3.50 | 50.00-49.00 | 26.00-24.70 | 56.00 |
| M36 | 4.00 | 55.00-53.80 | 29.00-27.40 | 61.00 |
