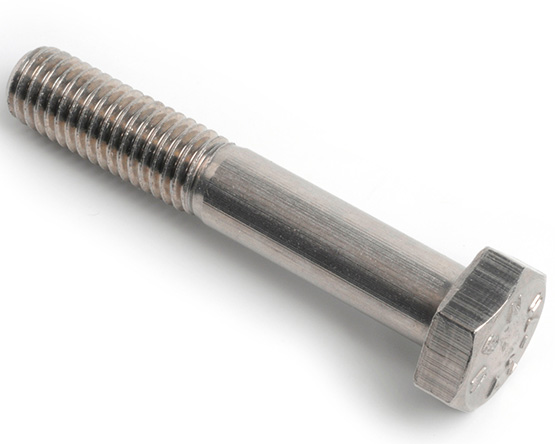

3/8-16 UNC X 2.3/4 六角头螺栓ASME B18.2.1 316不锈钢
£282.06 (exc VAT) per 100
部件号 U93138162750A4
£282.06 (exc VAT) per 100
| 数量和价格 | 价格 每 100 |
|---|---|
| 10 + | £282.06 |
| 20 + | £267.96 |
| 40 + | £254.56 |
| 100 + | £241.87 |
| 200 + | £226.92 |
本产品必须按以下倍数订购 10，数量会在您添加时四舍五入。
更多信息
| Thread | TPI UNC | TPI UNF | f | h | Lt | Lt (L over 6") |
|---|---|---|---|---|---|---|
| 1/4 | 20 | 28 | 0.438-0.428 | 0.163-0.150 | 0.750-1.000 | 1.000-1.250 |
| 5/16 | 18 | 24 | 0.500-0.489 | 0.211-0.195 | 0.875-1.125 | 1.125-1.375 |
| 3/8 | 16 | 24 | 0.562-0.551 | 0.243-0.226 | 1.000-1.250 | 1.250-1.500 |
| 7/16 | 14 | 20 | 0.625-0.612 | 0.291-0.272 | 1.125-1.375 | 1.375-1.625 |
| 1/2 | 13 | 20 | 0.750-0.736 | 0.323-0.302 | 1.250-1.500 | 1.500-1.750 |
| 9/16 | 12 | 18 | 0.812-0.798 | 0.371-0.348 | 1.375-1.625 | 1.625-1.875 |
| 5/8 | 11 | 18 | 0.9380.922 | 0.403-0.378 | 1.500-1.750 | 1.750-2.000 |
| 3/4 | 10 | 16 | 1.125-1.100 | 0.483-0.455 | 1.750-2.000 | 2.000-2.250 |
| 7/8 | 9 | 14 | 1.312-1.285 | 0.563-0.531 | 2.000-2.250 | 2.250-2.500 |
| 1" | 8 | 12 | 1.500-1.469 | 0.627-0.591 | 2.250-2.500 | 2.500-2.750 |
